Plastic Injection Molder – Part 4

I’ve been swamped at work with a couple of pretty big projects, but I got a bit more work done on the injection molder frame and controller. First the controller:

Wired up, and powered on.
Wired up, and powered on.



Yup, all wired up and working. I’ve got it heating the chamber and have had it all the way up to 400 degrees. I’ve got a good part of the frame built, as well, but I still have the welding to do. I also have to figure out how I’m going to mount the heating chamber to the frame:

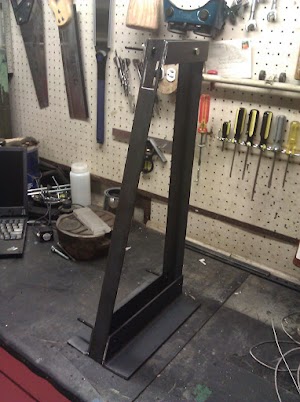

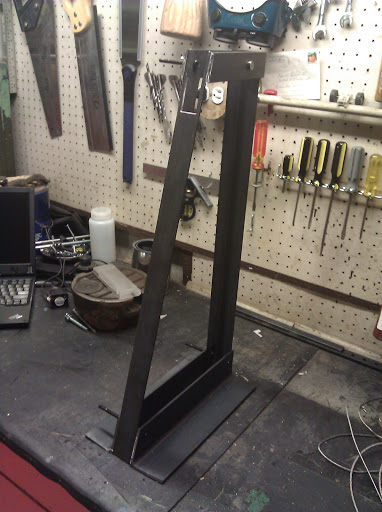

The frame, so far
The frame, so far



I’m getting there, if a bit slowly.
